Part #ISO 1-1/4

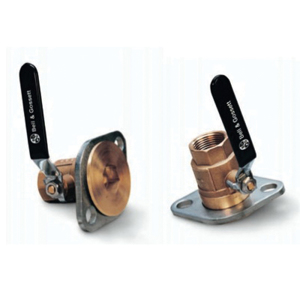

1-1/4 Npt Iso Flange Pair 101223

: Brand: Bell & Gossett
Nominal Size: 1-1/4 in
Dimensions: 4-7/16 in Flange, 3-19/64 in Inlet to Outlet Length x 3 in Top to Inlet Center Valve
Body Material: Brass
Softgoods Material: PTFE Packing Seat Ring
Actuator Type: Handle
Pressure Rating: 150 psig
Temperature Rating: 200 deg F
End Style: NPTF
Finish: Polished Chrome
Trim Material: Brass
: The isolation flange is a combination of an isolation ball valve and a companion flange for circulators. The isolation flange allows easy service or replacement of the circulator without the need to drain the system. The isolation flange fits the Bell & Gossett NRF/NBF/SSF wet rotors, Series PL, Series 100, PR and LR circulators.
: Free floating flange allows easy alignment and installation of pumps|Isolates the circulator so you don't need to drain the entire system|50 state lead free|Suitable for use with NRF/NBF/SSF, Series PL-30, PL-36, PL-55,Series 100, PR and LR B and G circulators|Construction: Lead-free brass valve body, chrome plated steel flange and lead-free brass ball
: Bell & Gossett Isolation Flange, 1-1/4 in Nominal, NPTF, 150 psig, 200 deg F, Handle Actuator, Brass Body, Brass Trim, PTFE Packing Seat Ring, Polished Chrome, 4-7/16 in Flange, 3-19/64 in Inlet to Outlet Length x 3 in Top to Inlet Center Valve
