Auer Steel

Part #HD52AK653

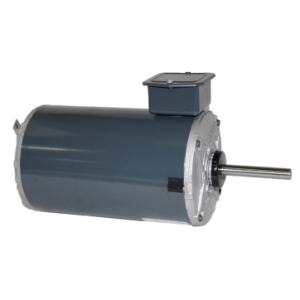

1HP Condenser Motor 208/230/460 3PH 1140

: Brand: Totaline
Horsepower: 1 hp
Frame: 56Y
Voltage Rating: 208 to 230 VAC
Dimensions: 19.4 in L x 10.7 in W x 6.5 in H
Frequency Rating: 50 Hz
Speed: 1140 rpm
Rotation: CCW
Shaft Size: 5/8 in Dia x 4 in L
Phase: 3 ph
Application Type: Condenser Fan Motors
Amperage Rating: 6.5/3.3 A Full Load
Bearing Type: Ball
: Totaline Condenser Motor, Condenser Fan Motors Application, 1 hp, 208 to 230 VAC, 6.5/3.3 A Full Load, 50 Hz Frequency, 3 ph, 1140 rpm Speed, 56Y Frame, 5/8 in Dia x 4 in L Shaft, CCW Rotation, Ball Bearing, 19.4 in L x 10.7 in W x 6.5 in H Dimensions
