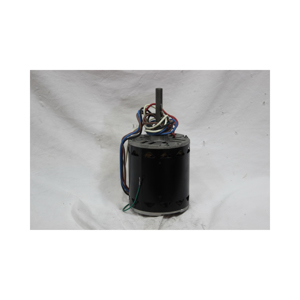

Auer Steel | 1 HP Blower Motor 208-230 1PH CCW 1100

Part #HC52SE208

1 HP Blower Motor 208-230 1PH CCW 1100

: Brand: Totaline
Horsepower: 1 hp
Frame: 48
Voltage Rating: 200/230 VAC
Mounting Type: Belly Band/Resilient Ring
Dimensions: 5.6 in Dia x 11.8 in L
Frequency Rating: 60 Hz
Special Features: Permanent Split Capacitor Motors
Number of Speeds: 3
Speed: 1100 rpm
Rotation: CCW
Shaft Size: 5/8 in Dia x 4 in L
Phase: 1 ph
Application Type: Fan & Blower Motors
Amperage Rating: 5.1 A Full Load
Bearing Type: Ball
: Totaline Inducer Draft Direct Drive Motor, Fan & Blower Motors Application, Permanent Split Capacitor Motors Special Features, 1 hp, 200/230 VAC, 5.1 A Full Load, 60 Hz Frequency, 1 ph, 1100 rpm Speed, 3 Speed, 48 Frame, 5/8 in Dia x 4 in L Shaft, CCW Rotation, Ball Bearing, Belly Band/Resilient Ring Mounting, 5.6 in Dia x 11.8 in L Dimensions
