Auer Steel | 1/2 HP Condenser Motor 230-460 1PH CCW 1

Auer Steel

Part #HC44VL851

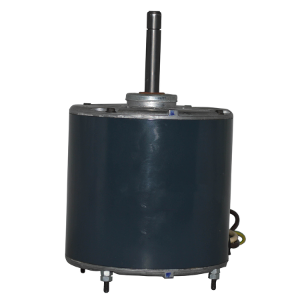

1/2 HP Condenser Motor 230-460 1PH CCW 1

: Brand: Totaline
Horsepower: 1/2 hp
Frame: 48
Voltage Rating: 230/460 VAC
Mounting Type: Belly Band
Dimensions: 7.6 in L x 6.5 in W x 11.1 in H
Frequency Rating: 60 Hz
Amperage Rating: 3.2/1.6 A Full Load
Speed: 1075 rpm
Rotation: CCW
Phase: 1 ph
Application Type: Condenser Fan Motors
Shaft Size: 1/2 in Dia x 2-1/2 in L
Bearing Type: Ball
: Totaline Condenser Fan Motor, Condenser Fan Motors Application, 1/2 hp, 230/460 VAC, 3.2/1.6 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 48 Frame, 1/2 in Dia x 2-1/2 in L Shaft, CCW Rotation, Ball Bearing, Belly Band Mounting, 7.6 in L x 6.5 in W x 11.1 in H Dimensions
