Auer Steel | 1/12 HP Condenser Motor 208-230 1PH Cw 1

Auer Steel

Part #HC31GE232

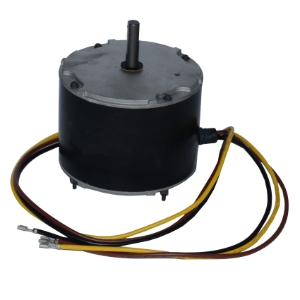

1/12 HP Condenser Motor 208-230 1PH Cw 1

: Brand: Totaline
Horsepower: 1/12 hp
Frame: 48
Voltage Rating: 208 to 230 VAC
Amperage Rating: 0.5 FLA
Mounting Type: Through Bolt
Phase: 1 ph
Application Type: Condenser Fan Motors
Bearing Type: Sleeve
Dimensions: 5-1/2 in L x 5-1/2 in W x 6 in H
Frequency Rating: 60 Hz
Speed: 1100 rpm
Rotation: CW
Shaft Size: 1/2 in Dia x 1-1/2 in L
: Totaline Condenser Fan Motor, Condenser Fan Motors Application, 1/12 hp, 208 to 230 VAC, 0.5 FLA, 60 Hz Frequency, 1 ph, 1100 rpm Speed, 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, CW Rotation, Sleeve Bearing, Through Bolt Mounting, 5-1/2 in L x 5-1/2 in W x 6 in H Dimensions
